Arduino

USB to PC dartboard

The goal is to use Martin Persson XNADarts software with an Arduino Uno and an Arachnid galaxy II matrix (8*11 matrix convert to 6*11 matrix)  -


ARACHNID GALAXY II with Arduino UNO

Arachnid GII matrix

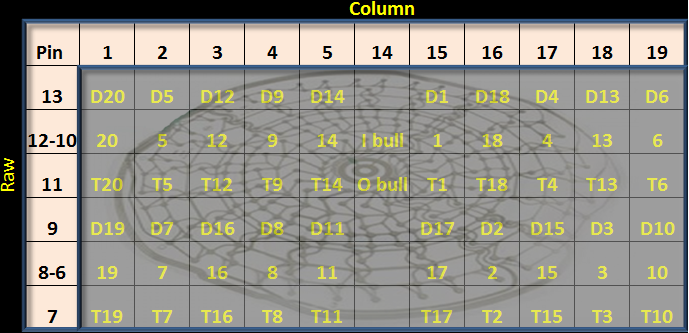

pin8 and 6 - pin10 and 12 are shunted to avoid inner and outer considération and to have a 6*11 matrix

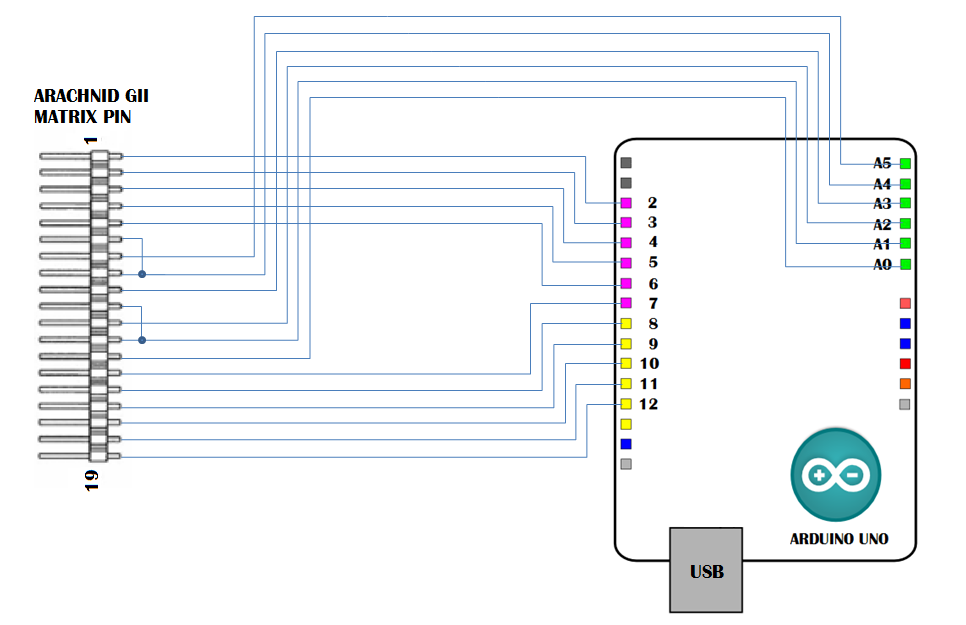

Raw of the dart matrix are connected directly to Arduino A0 to A5 and Column are connected to digital input/output 2 to 12 - Especially for Arachnid galaxy dartboard, pin 6 with 8 and pin 10 with 12 are shunted.

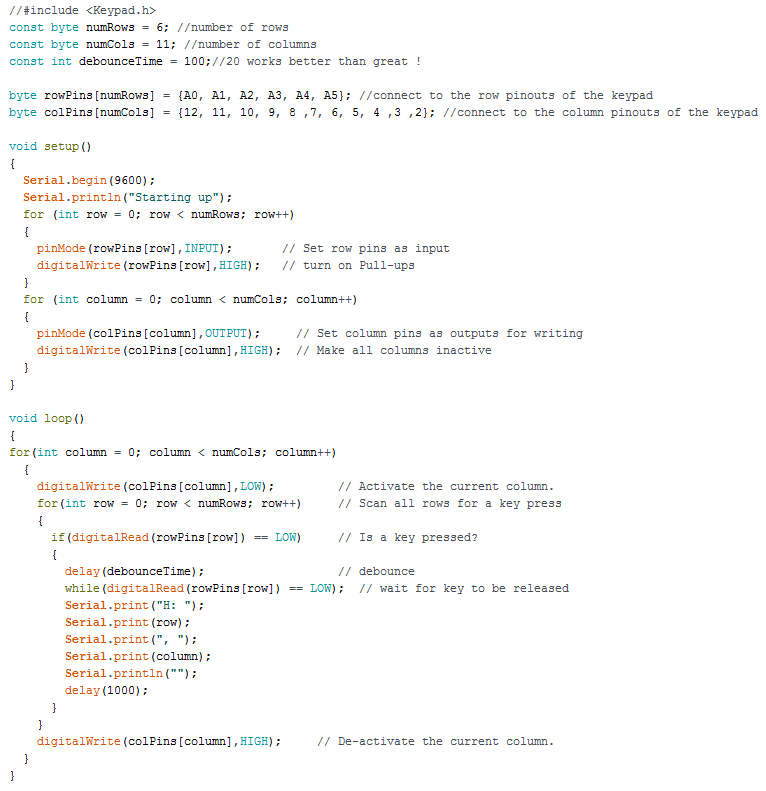

Arduino configuration based on pyDarts and XNADarts to be load into the Arduino :


Next step will be to use the 3 buttons and the Missed Dart Detector of the arachnid........
